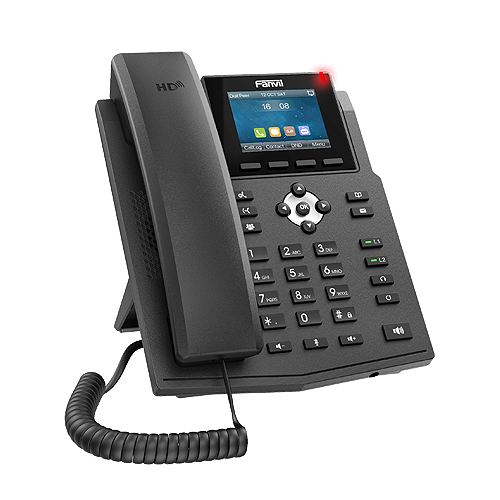

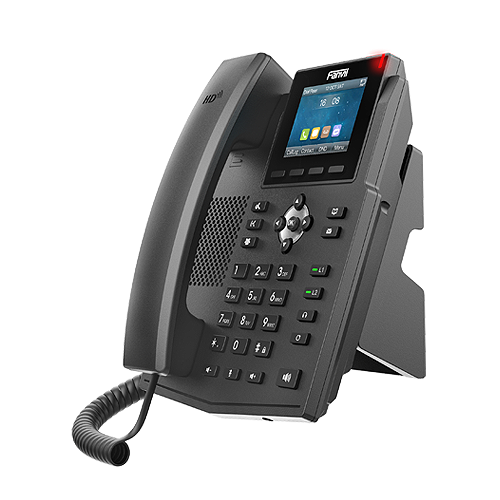

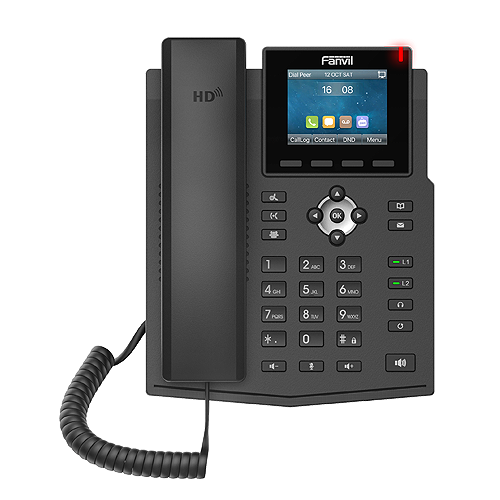

Fanvil X3SG New Version IP Phone

Fanvil X3SG New Version IP Phone

The Fanvil X3SG is an entry-level Gigabit IP Phone featuring a 2.8-inch colour display. The X3SG new version possesses G.722 and Opus to deliver crystal-clear audio. Newly added function keys, increased SIP lines and supported EHS headset also make it an efficient business tool in office. With all the necessary VoIP and other extended features, it provides a high-quality and convenient experience for users at an affordable price.

Fanvil X3SG Key Features

4 SIP lines, 3-way conference, SIP hotspot
2.8” main color display
HD audio on speakerphone and handset
Opus voice: can handle a variety of audio applications, including IP voice, multiparty conference etc.
Support EHS wireless headset
Dual Gigabit ports, integrated PoE
Stand with 2 adjustable angles of 45 and 50 degrees
Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix,

2.8-inch Colour Display
Bright 2.8-inch 320x240 color display on Fanvil X3SG new version IP phone, provides high-resolution graphics for the user.

Enhanced HD Audio Communication
With wideband codec G.722 and Opus, X3SG new version prevents the background noise from the external environment and presents you ideal HD audio in communication.

Generic
20 SIP lines
HD Voice
Support receiving Video Call
PoE Enabled
3 LCDs (Main + DSS)
Handset / Hands-free / Headphone mode
Intelligent DSS Keys
Desktop Stand / Wall-mounted (need an additional wall hanging part)
Optional External Power Supply

Phone Functions
Local Phonebook (2000 entries)
Remote Phonebook (XML/LDAP, 2000 entries)
Call logs (In/Out/Missed, 1000 entries)
Black/White List Call Filter
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronisation
Built-in Bluetooth 2.1: Support Bluetooth headset
Support WiFi Dongle
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Flash Drive or Server)
Action URL/Active URI
uaCSTA

Call Functions
Call out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (With server)
3-way Conference
Hot Line
Hot desking

Video
Video codec: H.264
Video call resolution: QCIF / CIF / VGA

Audio
HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
HAC handset
Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
Wideband Codec: G.722, AMR-WB, Opus
Full-Duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)
Packet loss concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-band - DTMF-Relay (RFC2833)/SIP INFO

Network
Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
IP Mode: IPv4/IPv6/IPv4&IPv6
IP Configuration: Static IP / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP / OpenVPN
VLAN
LLDP
QoS
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
LLDP
PPPoE
802.1x
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Management
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog

Physical Specifications
Main LCD x1: 4.3 inch (480x272) LCD colour screen
DSS Key-mapping LCD x2: 2.4 inch (240x320) LCD colour screen
Keypad: 51 keys, including
- 5 Line Keys (with LED Indicator Light)
- 4 Soft-keys
- 8 function keys (hold, call forward, conference, phonebook, call log, MWI, headset, redial)
- 4 Navigation keys
- 12 Standard Phone Digits keys
- 3 Volume Control keys (Up/Down/Mute (Microphone))
- 12 DSS Keys (With LED Indicator Light)
- 1 Page-Switch (PS) key (With LED Indicator Light)
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1
Status Indicator Light x1 (Red)
RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
USB2.0 Port x1 (Connect with USB dongle or flash driver)
Safety keyhole x1
DC Power Input: 5V/2A
Power Consumption (PoE): 1.7W~10.46W
Power Consumption (Adapter): 1.38W~9.13W
Working Temperature: 0 ~ 45℃
Working Humidity: 10 ~ 95%
Installation:
- Desktop Stand
- Wall-Mounted (need an additional wall hanging part)
Colour: Black
Device Dimensions:
- Desktop Stand (Angle 1): 239 x 199.3 x 185.8mm
- Desktop Stand (Angle 2): 239 x 188.5 x 195.6mm
- Wall-Mounted: 239 x 119.2 x 233.6mm
Gift Box Dimensions: 335 x 243 x 84mm
Outer CTN Dimensions: 506 x 440 x 356mm (10 PCS)
